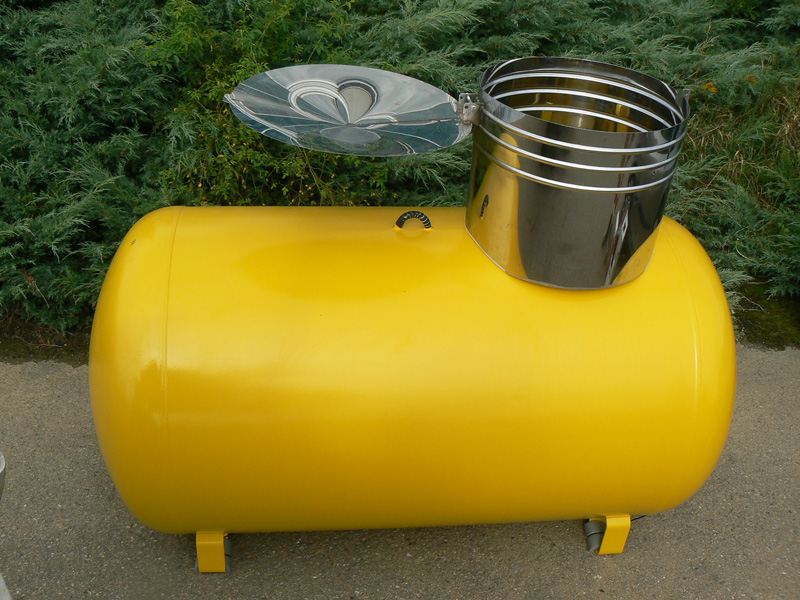

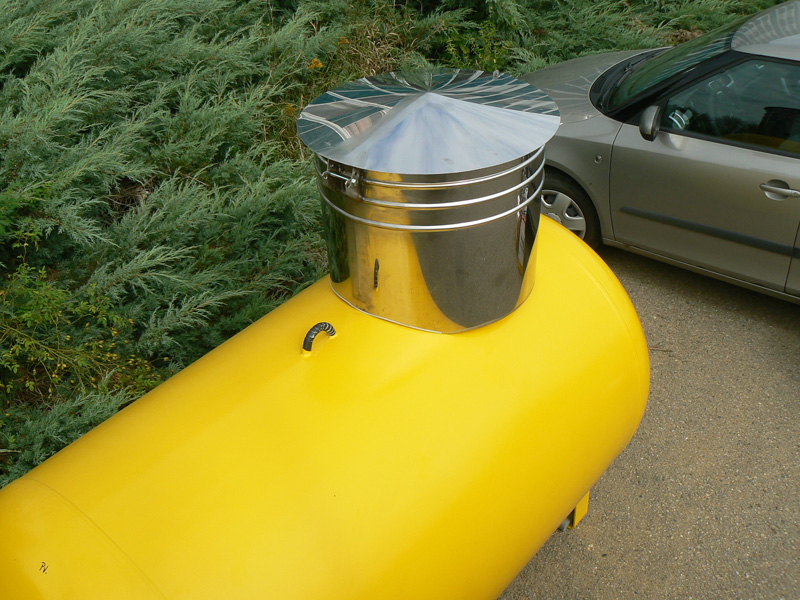

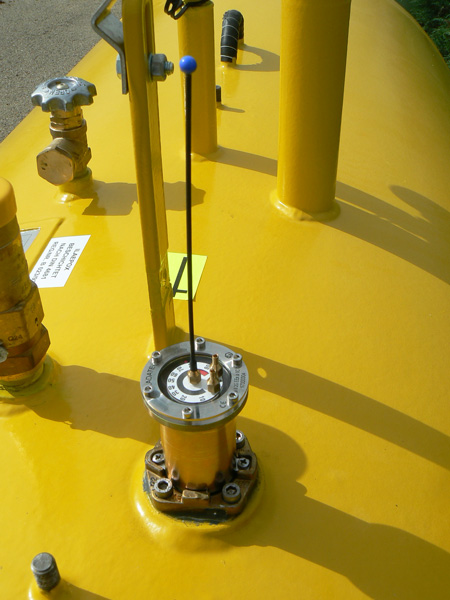

LPG storage tanks
We manufacture aboveground, semi and underground LPG storage tanks, in horizontal or vertical executions in volumes from 0.5m3 to 200m3. All our tanks meet the requirements of European Pressure Equipment Directive 2014/68/EU and bear CE 1017 marking.
LPG storage tanks can be used for domestic and commercial heating purposes, for LPG automotive filling, in-dustrial and gas terminal applications.
We offer delivery of ordered tanks on our special trucks in full loadings, including unloading with hydraulic crane.
| Capacities |
500 - 200 000 litres
|
|---|---|
| Outer diameters |
Ø800/ Ø1000/ Ø1200/ Ø1250/ Ø1600 / Ø2000/ Ø2510 / Ø2900 mm
|
| Operating pressure |
Standard 15,6 bar (other pressures from 12,1 bar to 18.5 bar)
|
| Test pressure | 22,3 bar (alternative pressure ranges 17,3 to 27 bar) |
| Operating temperature |
Standard -20/+40˚C (alternative temperature ranges from -40°C to +55°C)
|
| Medium |
Liquefied gas DIN 51622 / EN 589
|
| Standard design |
according to EN ISO 12542_A1, AD2000, PED 2014/68/EU.
Weld joint evaluation AD-HP0 |
| Regulation compliance |
European Pressure Equipment Directive 2014/68/EU, modules B/G + D
|
Download: LPG storage tanks and equipment
